Casing Heads



The casing head comes over the well’s starting casing string’s top casing section, fixed by threaded or slip-on welded flanges. The casing head’s housing shall receive the casing hanger serving as hanger and primary sealer for the interim or safety casing string. Its two side connectors are of the API 2” LP type.

The head’s threading at the bottom may be manufactured as requested by the Client (BC, STC, LC,  etc.).

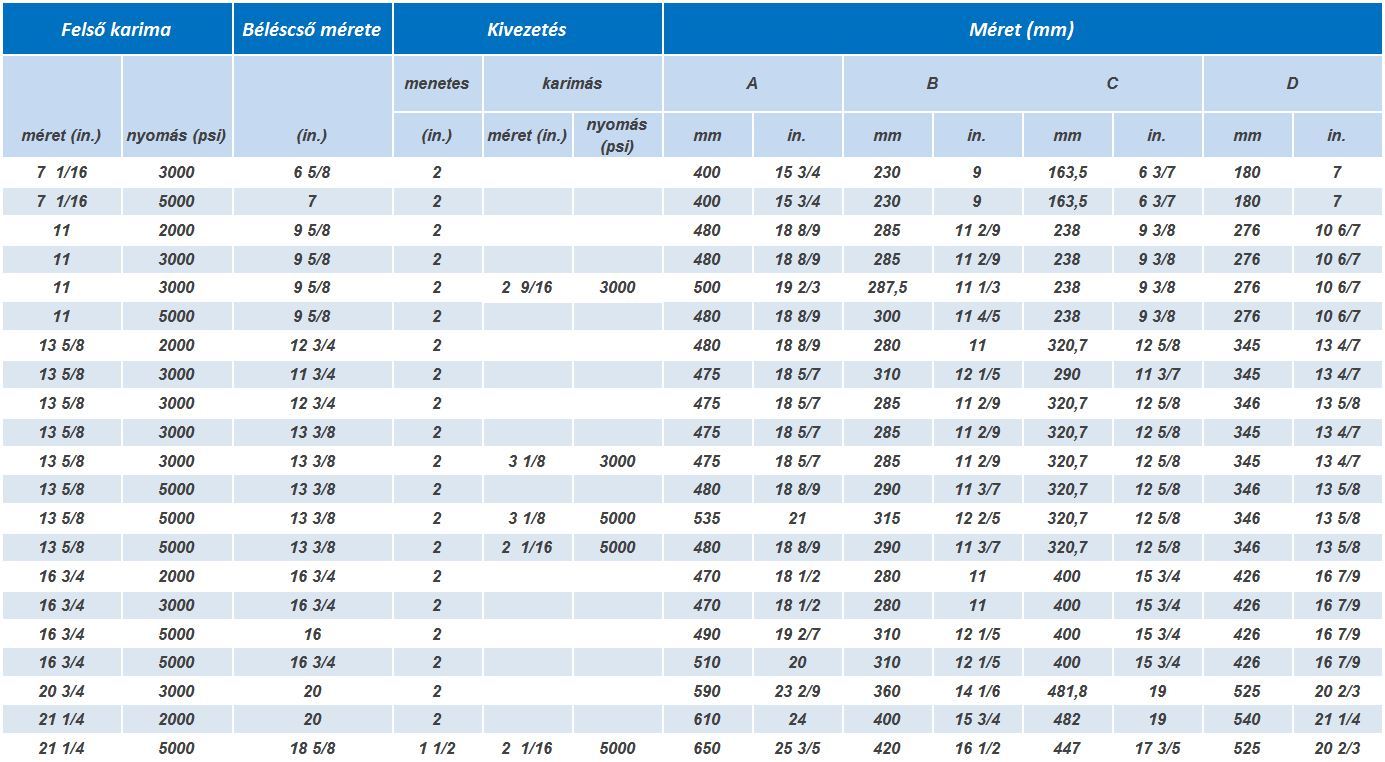

  •  Sizes:        7 1/16” – 21 1/4”
  • Pressure:  2000 - 5000 psi

Additional sizes are available upon request.

MBF type casing head -

with threaded connection

SOW type casing head -

with slip-on welding flange

Base-plate-type

casing head

Additional sizes are available upon request.
DKG VALVE reserves the right to change the Specifications without notice!
